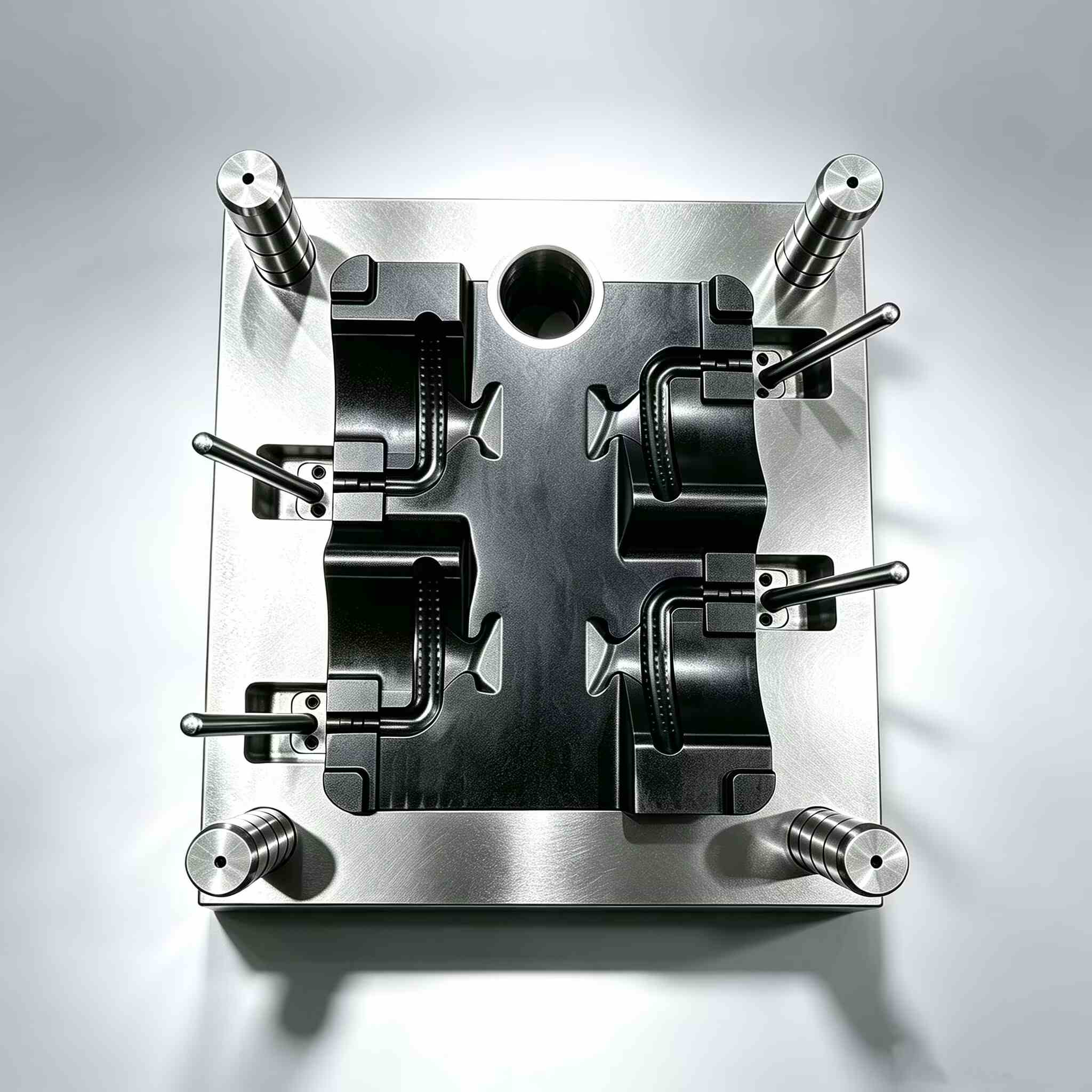

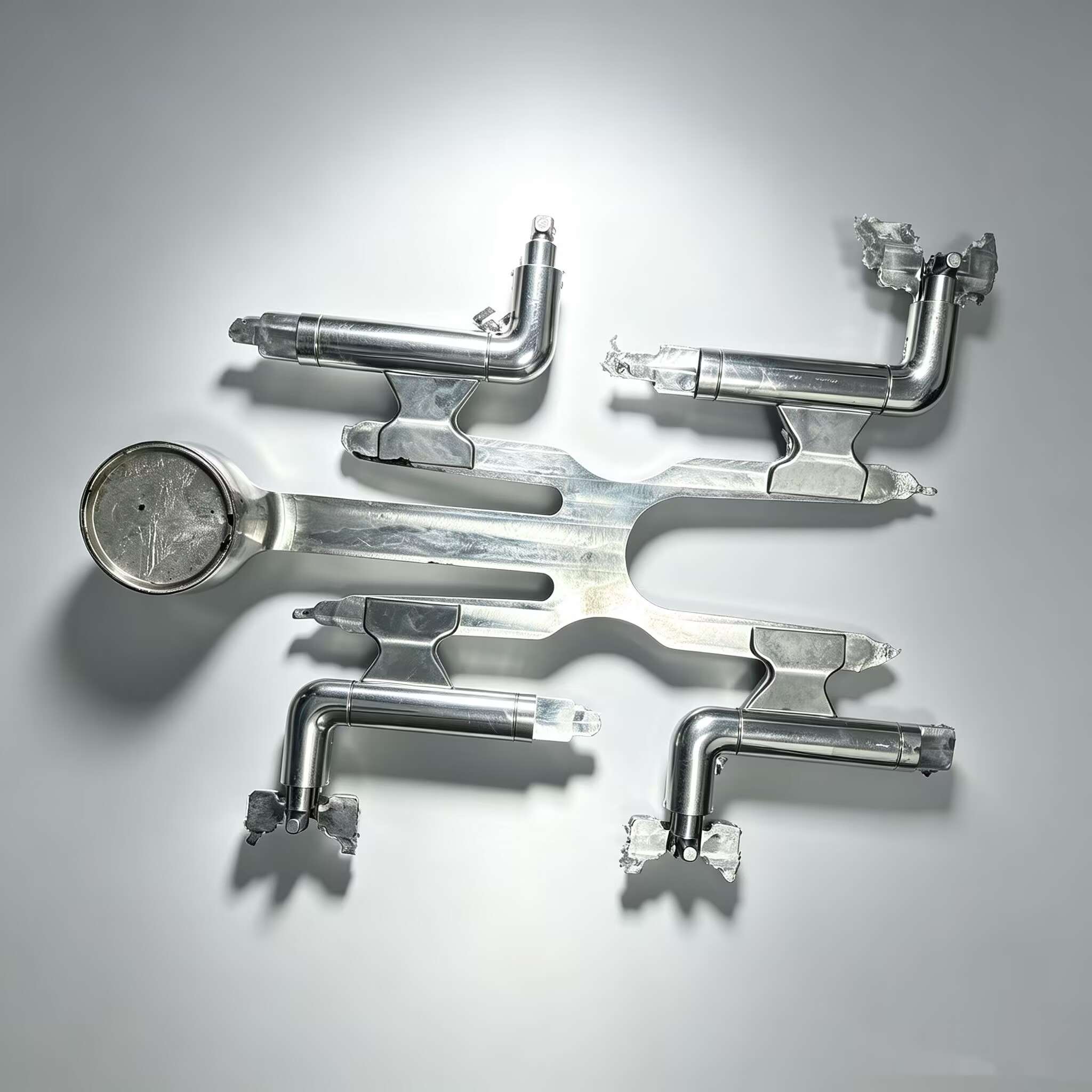

Zinc Die Casting Mold & Parts

Zinc Die Casting Mold & Parts

Zinc die casting is a hot-chamber high-pressure process that forces molten ZAMAK alloy (typically ZAMAK 3, 5, or 8) into a hardened steel mold cavity at injection pressures of 10–35 MPa. Because zinc melts at just 380–420°C — far below aluminum or magnesium — the hot-chamber design keeps the injection system submerged in molten metal, enabling shot rates of 200–800 cycles per hour on small-to-medium components. At XINKEY MOULD, we engineer zinc die casting molds with the same DFM rigor applied to our injection molds: gate position and runner balance are planned with flow simulation before steel is cut, cooling line routing is optimized around part geometry, and venting and overflow channels are sized to evacuate cavity gas within the first 15% of the injection stroke. The result is a mold that produces parts with consistent as-cast surfaces, stable dimensions across production batches, and a projected tool life of 300K–500K shots for standard projects and 500K+ with premium H13 and advanced heat treatment.

Exceptional surface detail & dimensional accuracy
Thinnest wall capability — down to 0.5 mm
Ideal for chrome plating & decorative finishing
High production speed — lower tooling cost
Excellent corrosion & wear resistance

Chat Now Message Email

Product Details

1. What Problems Can This Product Solve?

Hot Chamber Gooseneck Erosion and Clogging

In a hot-chamber machine, the gooseneck and nozzle are permanently immersed in molten zinc alloy. At sustained operating temperatures, zinc-iron intermetallic compounds build up on gooseneck surfaces, leading to shot-weight drift and eventual clogging. Standard carbon-steel goosenecks degrade in 8–12 weeks under high-volume production. XINKEY MOULD specifies nitrided or ceramic-coated gooseneck surfaces and plans cooling circuits to maintain melt temperature within a ±5°C band around the process setpoint, reducing compound buildup at the source.

Porosity and Surface Blistering After Plating

Zinc castings destined for electroplating or powder coating must be porosity-free. Trapped gas in the casting expands during elevated-temperature curing or plating baths, creating surface blisters that scrap parts at the finishing stage. Standard overflow and vent designs are often too conservative for parts with large flat surfaces. XINKEY MOULD uses flow simulation to identify last-fill regions, add targeted overflows and vacuum-assist vents, and recommend gate velocity within 30–50 m/s — the sweet spot for filling the cavity without turbulence-induced gas entrapment.

Warpage in Long Thin-Wall Parts After Ejection

ZAMAK alloys contract by approximately 1.1–1.3% during solidification. On a long, thin-walled part, uneven cooling across the cavity creates residual thermal stress — the part bows or twists after ejection and cannot meet flatness specifications. XINKEY MOULD applies conformal cooling lines to balance heat extraction on thick and thin sections, models solidification and thermal stress distribution during DFM, and recommends post-casting straightening fixtures when geometry makes warpage unavoidable.

2. Typical Applications

Automotive Interior and Exterior Trim

Door handles, mirror housings, emblem bases, seatbelt components, and decorative bezels. ZAMAK 3 and 5 provide the surface smoothness required for chromium electroplating or PVD coating, meeting automotive Class-A surface standards.

Consumer Electronics Enclosures and Frames

Smartphone mid-frames, laptop hinge brackets, earbud charging case shells, and router bases. Wall thickness down to 0.5mm with EMI shielding properties inherent to zinc alloys. Typical part weight: 5–80g.

Locks, Hardware, and Bathroom Fittings

Padlock bodies, door lock cylinders, faucet handles, shower head bodies, and furniture hinge components. Zinc’s excellent castability allows complex internal passageways for lock pins and water channels with tight as-cast tolerance.

Industrial Connector Housings and Fasteners

D-sub connector shells, pneumatic fitting bodies, belt buckle frames and release levers. Good strength-to-weight ratio with mechanical properties suitable for load-bearing components. Tensile yield 200–280 MPa on ZAMAK 5.

Toys and Collectible Metal Parts

Die-cast model car bodies, figurine bases, medallions and award badges. Zinc’s ability to faithfully reproduce fine surface detail — engraving, texture, small logos — makes it the material of choice for high-detail decorative castings.

3. Specification Table

Item	Details
Process Type	Hot-chamber high-pressure die casting
Typical Alloys	ZAMAK 3 (ZnAl4), ZAMAK 5 (ZnAl4Cu1), ZAMAK 8 (ZnAl8Cu1)
Part Weight Range	1g – 5kg per shot
Wall Thickness	0.5mm minimum; 1.0–2.5mm typical
Casting Tolerance	±0.05mm standard; ±0.03mm achievable on critical features
Cavity Range	1 to 8 cavities; single-cavity family tools available
Mold Steel	H13 (ESR grade), 8407, SKD61; premium: H13 ESR + nitriding + PVD coating
Cooling	Conformal baffle/bubbler cooling + direct water lines; oil heating for thin-wall tools
Surface Finish (As-Cast)	SPI B-2 to A-3 depending on alloy and cavity polish
Mold Life Expectancy	300K–500K shots (standard H13); 500K+ (premium steel + PVD coating)
Post-Casting Services	Vibratory deburring, vibratory finishing, shot blasting, electroplating (Zn, Ni, Cr), powder coating, e-coating
Turnkey Option	Mold export only, or mold + serial parts supply
Design & Validation	DFM report, flow + solidification simulation, T1 sample with dimensional report

4. Project Process & Quality Control

Phase 1: Part Castability Review & DFM

Action：Analyze 3D CAD for draft angles (minimum 0.5° on internal walls, 1° on external), wall thickness uniformity, rib-to-wall ratio, and undercut geometry. Recommend gate type, gate position, overflow locations, and parting line orientation.

QC Focus：DFM report: draft analysis heat map, gate location with flow distance calculation, estimated shot weight and injection pressure, cycle time projection.

Phase 2: Flow Simulation & Thermal Analysis

Action：Run ZAMAK alloy flow simulation with actual foundry process parameters — melt temperature, injection speed, die temperature. Identify last-to-fill zones and residual air traps. Place overflows and vacuum vents accordingly. Run solidification simulation to predict shrinkage porosity.

QC Focus：Simulation report: fill time under 40ms for thin-wall parts, solidification gradient map showing directional solidification toward gates/overflows, porosity probability map with porosity <1.5% in critical regions.

Phase 3: Mold Machining & Heat Treatment

Action：Rough mill cavity and core from H13 ESR stock. Vacuum heat treat to HRC 46–48. Stress relieve. High-speed finish milling with 0.01mm step-over on cavity surfaces. EDM for sharp corners and deep ribs.

QC Focus：100% hardness test on every insert: HRC 46–48. Dimensional check on cavity: ±0.01mm vs. 3D model. Surface roughness Ra ≤0.4μm on cavity faces. Water line pressure test at 10 bar for 30 minutes.

Phase 4: Mold Assembly & Fit Test

Action：Assemble core, cavity, ejector system, and slides. Verify slide timing with angle pins or hydraulic cylinders. Check ejector pin length and stroke. Install thermocouples for die temperature monitoring.

QC Focus：Assembly checklist: slide movement smooth with 0.02–0.04mm clearance, ejector system stroke verified, cooling circuit flow rate test, parting line match by blue-check (≥85% contact).

Phase 5: T1 Die Casting Trial at Partner Foundry

Action：Mount mold on hot-chamber die casting machine. Set process: melt temperature 410–430°C (ZAMAK 3), injection speed, intensification pressure, cooling time. Run 50–100 shots for process stabilization, then sample 20 consecutive shots for dimensional evaluation.

QC Focus：Dimensional report: 5 parts on CMM, all critical dimensions within tolerance. Cross-section cut on 2 parts: porosity <1.5% in structural areas. Surface inspection under 20× magnification: no cold shuts, no flow marks on visible surfaces. Shot-weight stability: CV <0.5% on 20-shot measurement.

Phase 6: Final Processing & Delivery

Action：Final part deburring, cleaning, anti-rust treatment of mold. Pack mold in fumigated wooden crate. Provide mold trial video, process parameter sheet, steel certificates, and spare parts list.

QC Focus：Customer-ready documentation: mold 3D assembly drawing, dimensional report, process parameter card, steel certs, lifetime spare parts kit. Parts shipped with PP bag + partition packaging.

5. Why Choose XINKEY MOULD

Mold Design Informed by Foundry Reality

Most mold makers draw a die casting tool without ever standing next to a hot-chamber machine. We work directly with our partner foundry. Our engineers understand gooseneck nozzle alignment tolerances, shot sleeve wear patterns, and how vent depth affects flash growth over a 20,000-shot run. This hands-on knowledge goes into every gate placement and overflow sizing decision.

Flow Simulation Before Steel Touches the Mill

Every zinc die casting mold project runs through ZAMAK-specific flow and solidification simulation. We don’t guess where porosity will appear — we model it, place overflows to redirect it, and confirm with cross-section sampling at T1. This reduces trial-and-error gate repositioning that consumes weeks in traditional mold-making schedules.

H13 ESR Steel as Standard — Not an Upgrade

Many suppliers quote AISI H13 but deliver lower-grade H13 with carbide banding that creates hot-checking cracks after 50K shots. XINKEY MOULD standardizes on electroslag remelted (ESR) H13 with vacuum heat treatment and triple tempering. For high-wear applications with glass-filled alloys or abrasive conditions, we offer PVD coating (CrN, AlCrN) on cavity surfaces for extended mold life.

Turnkey: One Contract, From Mold to Finished Part

You can buy the mold and run production in your own foundry. Or you can contract us for mold + serial parts supply — we build the tool, trial it, and deliver finished parts to your warehouse. No handoff friction between mold maker and foundry; one project manager handles the entire chain.

6. FAQ

Q1: What is the difference between hot-chamber and cold-chamber zinc die casting?

Hot-chamber die casting keeps the injection mechanism (gooseneck and nozzle) submerged in the molten zinc bath, making it self-priming and extremely fast — typical cycle time 3–8 seconds. Cold-chamber requires manually ladling or dosing molten metal into a shot sleeve, which is slower and used primarily for aluminum and magnesium. Zinc is almost always hot-chamber die cast, and that’s the process XINKEY MOULD optimizes for.

Q2: How thin can zinc die casting walls go?

With ZAMAK 3 and optimized gate design, we achieve wall thickness as low as 0.5mm on small-to-medium parts. However, the practical minimum depends on flow length — longer flow paths need thicker walls to fill before solidification. We evaluate this during DFM with flow simulation and recommend the minimum achievable wall for your specific geometry.

Q3: Can I get chrome-plated zinc parts directly from XINKEY MOULD?

Yes. We coordinate the full process chain: mold design → casting → deburring → polishing → electroplating (Zn, Ni, Cr). The mold is designed with electroplating in mind — uniform wall thickness to minimize sink marks, generous radii at junctions to avoid plating buildup, and flat surfaces free of flow lines that would show through the chrome finish.

Q4: What is the typical mold life for a zinc die casting tool?

300,000 to 500,000 shots on standard H13 with proper heat treatment and regular maintenance (nitriding touch-up every 30K–50K shots). For continuous high-volume programs exceeding 500K shots per year, we recommend ESR-grade H13 with PVD coating, which can extend mold life beyond 500K shots with reduced downtime for reconditioning.

Q5: I want to replace a sand casting or gravity casting process with zinc die casting — what’s the cost trade-off?

The die casting mold has a higher upfront cost than a sand mold pattern, but per-part cost drops dramatically — typically 60–80% lower than sand casting at volumes above 5,000 pieces per year. Zinc die casting also delivers better dimensional accuracy (±0.05mm vs. ±0.5mm for sand casting) and faster cycle times, which reduces WIP inventory. We can run a cost comparison analysis for your specific part during quotation.

Q6: What file format should I send for a die casting mold quotation?

3D CAD in STEP or IGES format plus a 2D drawing with tolerances, alloy specification (typically ZAMAK 3, 5, or 8), annual volume, and any post-casting finishing requirements (electroplating, powder coating, machining). If the part will be assembled with other components, an assembly drawing or mating part data helps us design critical interfaces correctly.

Q7: How long from mold order to first samples?

A single-cavity zinc die casting mold typically takes 5–7 weeks from design freeze to T1 sampling. Multi-cavity tools or tools with complex slides and core pulls may require 7–10 weeks. We provide a detailed project timeline with quotation and share weekly progress photos during execution.
