EDM Spark Erosion

EDM Spark Erosion

Sinker EDM (also called ram EDM, die-sinking EDM, or spark erosion) shapes conductive materials by generating controlled spark discharges between a shaped electrode (typically graphite or copper) and the workpiece, both submerged in dielectric oil. The electrode — a negative-image form of the desired cavity — is fed downward while a servo system maintains a precise spark gap of 0.01–0.05mm. Each spark pulse erodes a microscopic volume of material; thousands of pulses per second progressively sink the electrode form into the workpiece. At XINKEY MOULD, sinker EDM is the go-to process for injection mold cavity features that milling cannot produce: sharp internal corners (where end mills leave a radius), deep narrow ribs (where long-reach end mills chatter and break), textured surfaces on contoured cavity floors (where a ball-nose cutter can't hold consistent surface finish at varying contact angles), and small blind features such as ejector pin bosses and gate vestiges. We machine both graphite electrodes (high-speed milled on dedicated graphite machines) and copper/tungsten-copper electrodes (CNC turned and milled), selecting electrode material based on the workpiece steel, surface finish target, and feature geometry. Every sinker EDM job starts with electrode design in CAD — modeling the electrode as an offset negative of the cavity, with undersize compensation for the spark gap and orbital motion strategy — followed by electrode machining, EDM process parameter programming, and final cavity measurement against the 3D model.

Machined on hardened steel up to HRC 60+
Sharp internal corners & deep rib features
Surface finish down to Ra 0.2 µm
Ideal for mold inserts & core/cavity details
No mechanical stress on workpiece

Chat Now Message Email

Product Details

1. What Problems Can This Product Solve?

Electrode Wear Causing Dimensional Drift in Deep Cavities

EDM electrodes themselves erode during the process — graphite wears at 0.1–0.5% of the material removal volume, copper at 1–3%. In deep cavities requiring 20mm or more of sink depth, electrode tip wear accumulates to 0.05–0.15mm, producing a cavity that is shallower at the bottom than the electrode shape. XINKEY MOULD compensates through multi-electrode strategies: a roughing electrode removes the bulk of material (accepting higher wear), a semi-finishing electrode restores geometry, and a finishing electrode — used only for the final 0.1–0.3mm of depth — maintains dimensional accuracy with minimal wear contribution. Electrode wear is calculated per geometry and programmed into the toolpath compensation.

Carbon Deposition and DC Arcing in Poor Flushing Conditions

EDM dielectric oil decomposes under spark heat, forming carbon particles. In deep ribs and blind pockets where flushing flow is restricted, carbon accumulates in the spark gap, causing unstable discharge — the spark path ‘wanders’ to a carbon bridge, producing DC arcing that pits and damages both electrode and cavity surface. Standard flushing through the electrode center hole is insufficient for narrow, deep features. XINKEY MOULD uses pulsed flushing synchronized with electrode retract (jump-flushing), programs electrode jump height and frequency optimized for cavity depth, and in extreme cases uses vacuum-assisted flushing through external nozzles to evacuate debris from the spark gap.

Surface Integrity After EDM: White Layer and Micro-Cracks on Mold Steel

The EDM process leaves a ‘white layer’ — a re-solidified surface zone 5–20µm thick with tensile residual stress and potential micro-cracking — on all spark-eroded surfaces. On injection mold cavities, this white layer reduces thermal fatigue life because micro-cracks propagate under repeated heating-cooling cycles. Standard finishing alone cannot fully remove it. XINKEY MOULD specifies finishing passes at reduced discharge energy to limit white layer thickness below 3µm, then removes the residual layer through diamond polishing of mold cavity surfaces — documented with surface integrity inspection to verify complete white layer removal on critical sealing and cosmetic surfaces.

2. Typical Applications

Injection Mold Cavity Sharp Corners and Fine Details

Boss features, snap-fit undercut details, seal groove profiles, textured logo cavities, and ejector pin boss recesses in hardened tool steel (H13, S136, D2 at HRC 48–62). Sharp internal corner down to R0.05mm — unachievable by end-mill machining.

Die Casting Mold Deep Ribs and Cooling Fins

Aluminum and zinc die casting mold cavities with deep cooling fin geometry (rib depth-to-width 5:1 to 8:1). EDM produces these ribs in fully hardened H13 without the tool deflection and breakage that limits deep-rib milling. Multi-electrode strategy ensures dimensional consistency across all ribs.

Blind Keyway, Hex Socket & Internal Spline Features

Blind hexagonal holes for wrench-driven fasteners, internal spline profiles in shaft ends, and keyway slots in hardened steel components. Sinker EDM produces these with a shaped electrode in one plunge cycle — no broaching tooling required.

Medical Mold Micro-Features and Micro-Fluidic Channels

Micro-fluidic mold cavity channels under 0.3mm width, micro-needle array cavities, and optical lens mold surface texture. Fine electrodes (machined by wire EDM or micro-milling) sink micro-features into mold steel with sub-micron positioning accuracy.

Forging Die and Extrusion Die Cavities

Hot forging die impressions, extrusion die bearing profiles, and die-shape cavities in H13 and H21 tool steel at full hardness. Sinker EDM produces the negative die cavity directly from a graphite electrode machined to the positive part shape — eliminating the need for die sinking by CNC milling on annealed steel followed by post-machining heat treatment with distortion risk.

3. Specification Table

Item	Details
Process	Sinker EDM / Ram EDM / Die-Sinking EDM / Spark Erosion
Electrode Materials	Graphite (EDM grades: Poco, Tokai), copper, tungsten-copper (CuW)
Max Cavity Size	300 × 250 × 150mm depth (subject to electrode size and flushing)
Positioning Accuracy	±0.003mm
Achievable Cavity Accuracy	±0.005mm (with multi-electrode strategy)
Minimum Internal Corner Radius	R0.05mm (graphite electrode); R0.03mm (copper/tungsten electrode)
Surface Finish (Ra)	Ra 0.8–1.6µm in semi-finishing; Ra 0.2–0.4µm in finishing with low-energy settings
Max Rib Depth-to-Width Ratio	8:1 achievable (EDM graphite electrode); 10:1 with copper-tungsten electrode
Workpiece Materials	Tool steel (H13, D2, SKD11, S136, P20), carbide, stainless steel, titanium, copper alloys — all conductive metals
Hardness Capability	Any hardness — typically HRC 48–62 for mold steels, HRA 90+ for carbide
Electrode Wear Ratio	Graphite: 0.1–0.5%; Copper: 1–3% (volume loss per volume removed from workpiece)
Multi-Electrode Strategy	Standard for deep cavities: roughing electrode → semi-finishing electrode → finishing electrode, with progressive wear compensation
Batch Capability	Single cavity to multi-cavity identical inserts; multi-electrode sets for multi-cavity simultaneous sinking
Lead Time (Single Cavity)	5–10 working days including electrode design, electrode machining, EDM process, and QC
Quality Control	CMM cavity measurement vs. CAD; surface roughness measurement; white layer inspection; electrode pre-machining dimensional check; EDM process parameter documentation
Design File Formats	3D CAD STEP/IGES of cavity geometry (for electrode design); 2D PDF drawing with cavity dimensions and tolerances

4. Project Process & Quality Control

Phase 1: Cavity Analysis & Electrode Design

Action：Analyze cavity geometry: identify features requiring EDM (sharp corners, deep ribs, blind pockets inaccessible to milling). Design electrode(s): modeled as negative offset from cavity, with spark-gap compensation, orbital motion allowance, and electrode holder interface. Determine multi-electrode strategy (rough/semi-finish/finish) based on cavity depth and tolerance.

QC Focus：Electrode design review: electrode-cavity fit verification in CAD, wear-compensation calculation, spark-gap offset verified, holder clearance checked. Electrode quantity plan: sufficient electrodes to complete cavity within wear-compensated tolerance.

Phase 2: Electrode Machining

Action：Machine graphite electrodes on dedicated high-speed graphite mill with dust extraction. Machine copper electrodes on CNC mill/lathe. Verify electrode dimensions on CMM against electrode CAD model. Mark each electrode with sequence number (rough, semi-finish, finish) and orientation reference.

QC Focus：CMM on every electrode: all critical features within 0.005mm of electrode CAD. Surface finish on finishing electrode: Ra ≤0.4µm. Electrode edge sharpness check: corner radius meets target. Electrode sequenced and labeled. Holder interface verified.

Phase 3: Workpiece Setup & EDM Process Programming

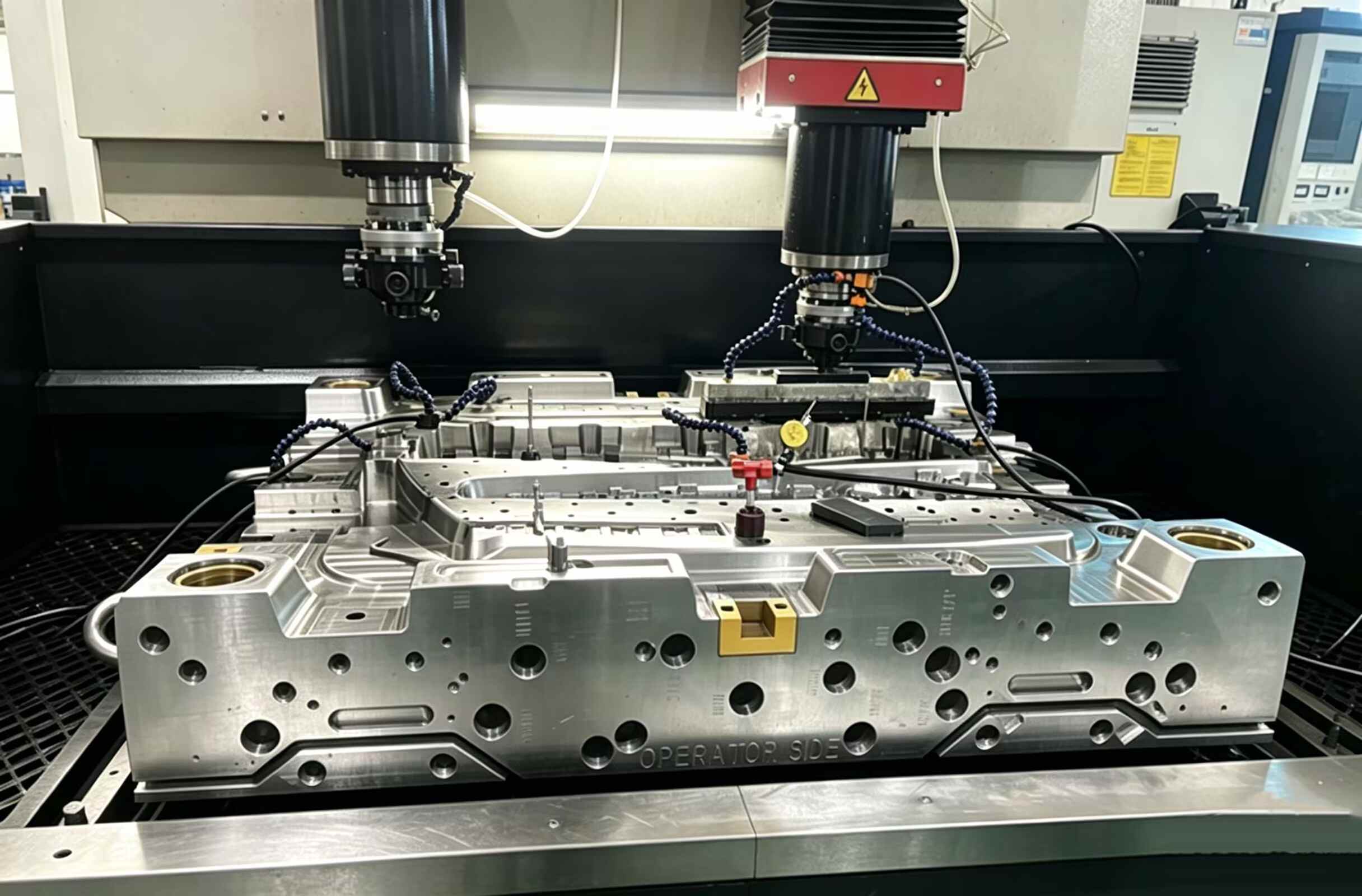

Action：Mount hardened mold insert on EDM machine table. Align using edge-finding and probe to establish work coordinate system. Load roughing electrode, set spark gap and orbital pattern. Program EDM parameters: pulse on-time, peak current, pulse off-time, servo sensitivity, jump height and frequency, flushing condition. Set dielectric oil level and temperature.

QC Focus：Workpiece alignment: edge-find within 0.003mm. Electrode alignment: dial indicator on electrode shank, runout <0.005mm. Dielectric oil: dielectric strength verified, temperature 20 ±1°C. EDM parameter set verified against machine database for material and electrode combination.

Phase 4: Roughing EDM

Action：Execute roughing cycle with roughing electrode. High-energy pulses for maximum material removal rate. Orbital motion (typically circular or vector) to produce spark-gap clearance. Monitor spark stability and flushing condition. Complete roughing to within 0.1–0.2mm of final cavity dimension.

QC Focus：Post-roughing measurement: cavity depth within 0.1mm of target; cavity profile within 0.05mm on lateral dimensions. Electrode wear measured: within predicted range. No DC arcing evidence on cavity surface. Visual inspection: no severe pitting or carbon deposition.

Phase 5: Semi-Finishing & Finishing EDM

Action：Switch to semi-finishing electrode. Reduced pulse energy and orbital motion for surface quality and dimensional correction. Measure cavity after semi-finish, compensate finishing electrode offset accordingly. Switch to finishing electrode for final pass at lowest pulse energy, small spark gap, and fine orbital steps.

QC Focus：Post-finishing CMM: all cavity dimensions within ±0.005mm of CAD. Surface roughness Ra 0.2–0.8µm target achieved. White layer thickness <3µm on finishing settings. Micro-crack check: no cracks visible at 50× magnification on critical surfaces. Electrode consumption within predicted range.

Phase 6: Post-EDM Treatment & Final QC

Action：Manual diamond polish to remove residual white layer from cavity surfaces where specified. Surface texturing or grain finishing per specification. Anti-rust treatment. Package with protective wrapping.

QC Focus：Final CMM report: full cavity vs. CAD comparison. Surface roughness certificate. White layer removal verification (microscope inspection on polished surfaces). Material hardness re-check in non-critical area to confirm EDM did not affect bulk hardness. Electrode inspection records. Delivery packaging.

5. Why Choose XINKEY MOULD

Graphite Electrode Machining In-House

Many mold shops outsource electrode machining, adding 3–5 days to the EDM workflow and creating a communication gap between electrode design intent and electrode manufacturing. XINKEY MOULD machines graphite electrodes in-house on a dedicated high-speed graphite mill. Electrode design, machining, CMM verification, and EDM process programming happen under one roof and one engineer — so electrode-to-cavity dimensional chain is closed-loop.

Multi-Electrode Strategy Engineered Per Cavity

A single-electrode EDM job inevitably compromises between material removal speed (high energy, high wear) and accuracy (low energy, low wear). We design multi-electrode strategies per cavity: a roughing electrode optimized for speed, a semi-finishing electrode for geometry restoration, and a finishing electrode for final tolerance and surface quality. The result is faster overall cycle time with final accuracy better than a single-electrode approach.

EDM Finishing That Minimizes Polishing Rework

A poorly finished EDM cavity leaves a white layer that must be polished out — adding hours of manual labor and the risk of dimensional distortion from uneven polishing. XINKEY MOULD’s finishing EDM parameters are tuned for minimum white layer (<3µm) and surface roughness Ra 0.2–0.4µm. This means the polisher removes only the residual film, not a heavy recast zone — polishing time drops and dimensional accuracy remains intact.

Complete Electrode Documentation for Mold Maintenance

When you receive a mold from XINKEY MOULD, you also receive electrode CAD data and machining programs. If a cavity insert is damaged in production and needs replacement, you have the electrode information to reproduce the identical cavity — without reverse-engineering the worn part or re-developing the EDM process from scratch.

6. FAQ

Q1: What can sinker EDM do that CNC milling cannot?

Three things: sharp internal corners — EDM electrodes can produce R0.05mm corners where end mills leave a radius equal to the cutter radius; deep narrow ribs — EDM erodes with zero cutting force, achieving depth-to-width ratios of 8:1 without tool deflection; and blind features in deep pockets — EDM reaches features where the milling tool shank would collide with cavity walls, such as internal O-ring grooves and undercut snap details.

Q2: Graphite vs. copper electrode — which is better?

Graphite is the default choice for most mold EDM work: lower wear rate (0.1–0.5% vs. 1–3% for copper), faster machining (graphite mills faster), and better performance at high pulse energies (roughing). Copper is preferred for very fine detail (R<0.05mm), thin ribs (copper is less brittle than graphite), and applications requiring the best surface finish. Tungsten-copper (CuW) is used for carbide workpieces and extreme-wear applications. We select electrode material based on your cavity geometry and tolerance — you don’t need to specify; we recommend during DFM.

Q3: How long does it take to sink a mold cavity with EDM?

A typical injection mold cavity with mixed geometry (sharp corners, ribs, blind pockets) takes 2–5 days of EDM machine time, plus 2–4 days for electrode design and machining. Simple cavities may be 1–2 days. Deep, complex cavities with multi-electrode strategies can extend to 7–10 days. We provide an EDM time estimate during quotation based on your cavity CAD.

Q4: Does EDM change the hardness or properties of the mold steel?

The bulk hardness of the steel is unaffected — EDM heating is confined to a surface layer only microns thick. However, the immediate surface layer (the white layer) is metallurgically altered: re-solidified with tensile residual stress and potential micro-cracks. This white layer must be removed from functional mold surfaces through polishing. Our finishing EDM parameters minimize white layer thickness to <3µm, making removal fast and controlled.

Q5: I need 8 identical cavity inserts — can EDM produce them consistently?

Yes. We machine a set of electrodes — multiple copies of the same electrode design — with CMM verification that all electrodes in the set are within 0.005mm of each other. Each cavity insert is EDMed with a dedicated electrode set from the same batch, using identical process parameters. Post-EDM CMM on all cavities confirms dimensional uniformity. This is standard practice for multi-cavity mold production.

Q6: What surface finish can EDM achieve on a mold cavity?

Standard semi-finishing EDM delivers Ra 0.8–1.6µm. Low-energy finishing passes achieve Ra 0.2–0.4µm — comparable to fine milling. For cosmetic mold surfaces (SPI A-2 and above), EDM finishing is followed by diamond polishing to remove the residual white layer and achieve the final surface specification. EDM texture (spark-eroded matte finish) is sometimes specified intentionally for certain part surfaces — we can tune the spark parameters to produce a controlled matte texture if desired.

Q7: Can EDM produce a complete mold cavity, or does it complement milling?

Typically, EDM complements CNC milling. The bulk of the cavity is rough-milled before heat treatment, then the mold is hardened, and EDM produces the features that cannot be milled: sharp corners, deep ribs, blind details, and textured surfaces. For very complex cavities or extremely hard materials (carbide), EDM can produce the entire cavity profile from solid stock — but this is slower and more expensive than combined milling + EDM, so it’s reserved for cases where milling is not feasible.
