Threading Mold for Caps, Medical Caps and Precision Connectors

Threading Mold for Caps, Medical Caps and Precision Connectors

High-Speed Automation for Complex Threads.

Specializing in gear-driven unscrewing systems for internal and external threads. We turn complex mechanical requirements into fast, 100% automated production lines.

10s cycle time
Over 40 million molding cycles in long-term industrial use
Mold sizes from 300mm to 650mm for flexible production scale
Proven tooling stability in continuous production for over 15 years
Designed for high-volume, multi-cavity cap production (4–48 cavities)

Chat Now Message Email

Threading Mold Overview

1. Product Overview

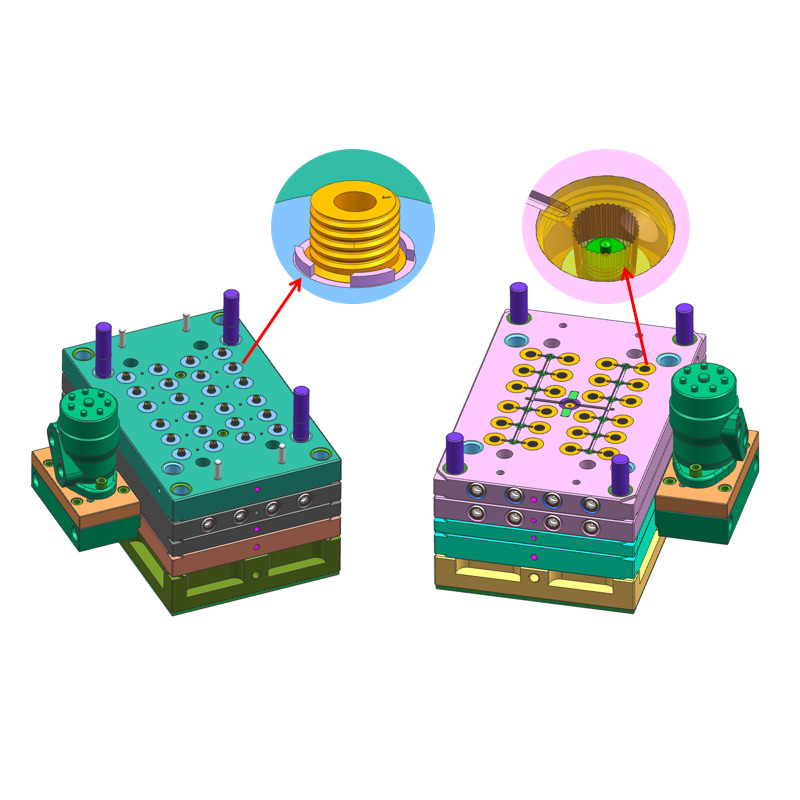

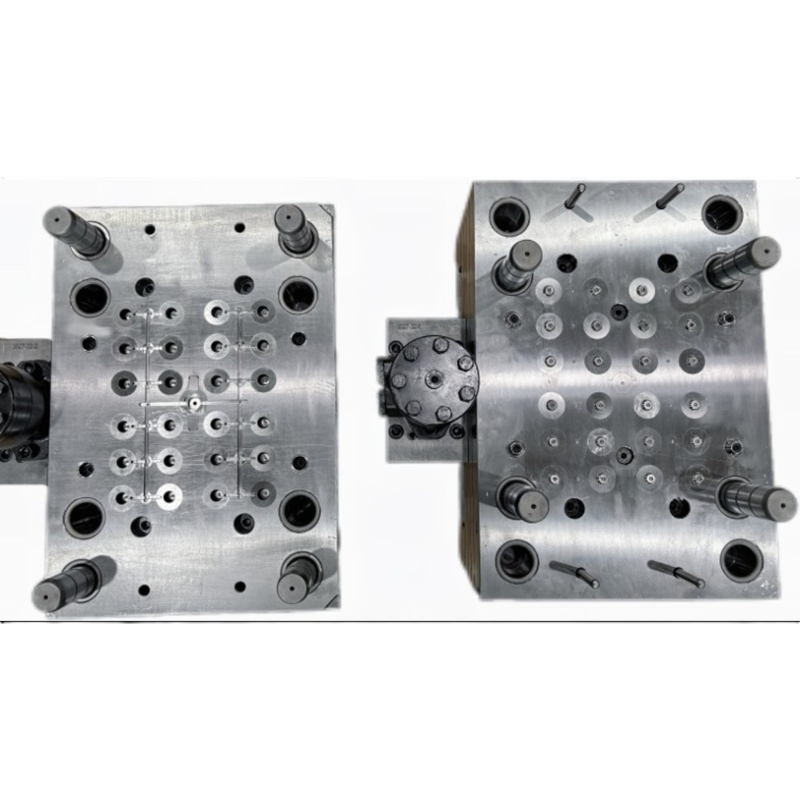

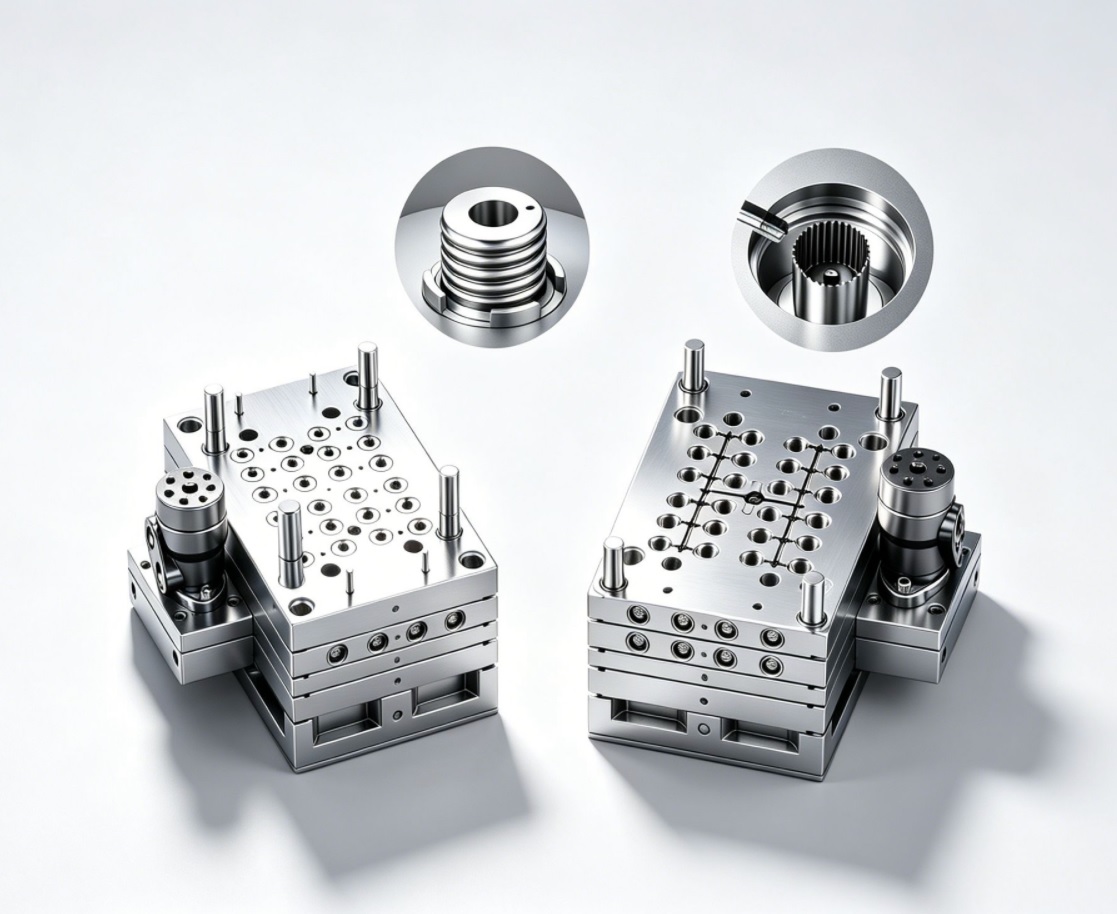

A threading mold—also called an unscrewing mold—is a specialized injection mold for plastic components with precise screw threads on internal or external surfaces. Standard two-plate molds cannot eject threaded parts directly because the thread acts as an undercut. The threading mold integrates a mechanical drive system—typically rack and pinion, hydraulic motor, or electric servo—that rotates the threaded core out of the solidified part before mold opening completes. At XINKEY MOULD, we run a full DFM review on every threading project, analyzing thread pitch against resin shrinkage, evaluating the optimal unscrewing drive method for your cycle time target, and simulating gear train kinematics before cutting steel. The result is a mold that demolds threads cleanly, maintains cavity-to-cavity consistency, and holds up under the thermal cycling of high-volume production.

2. What Problems Can This Product Solve?

Thread Core Galling Under Long Production Runs

In a high-cycle threading mold, the rotating core slides against the cavity surface thousands of times daily. If steel pairing or lubrication is wrong, galling starts within weeks—threads roughen, quality drifts, and the mold needs rework. We specify nitrided H13 or D2 steel for thread cores, hard-chrome plate wear surfaces, and design-in grease grooves that maintenance teams can service without pulling the mold from the press.

Synchronization Drift in Multi-Cavity Unscrewing

On an 8-cavity tool, all eight unscrewing cores must rotate in lockstep. A single loose gear produces one cavity half a pitch behind, scrapping one-eighth of every shot. XINKEY MOULD runs kinematic simulation of the gear train during 3D design, specifies keyway-secured gears with anti-backlash compensation, and performs a 4-hour continuous dry-run test before shipping to verify that all cavities stay synchronized.

Thread Surface Defects on Transparent Materials

Clear PP or PC caps are popular in cosmetics, but thread roots in transparent parts show every hesitation mark and flow line. A standard injection profile for opaque grades leaves visible weld lines. XINKEY MOULD profiles dedicated injection velocity curves for transparent grades, polishes thread cores to SPI A-2 or higher, and uses short-shot analysis to confirm clean flow front meeting in threaded areas.

3. Typical Applications

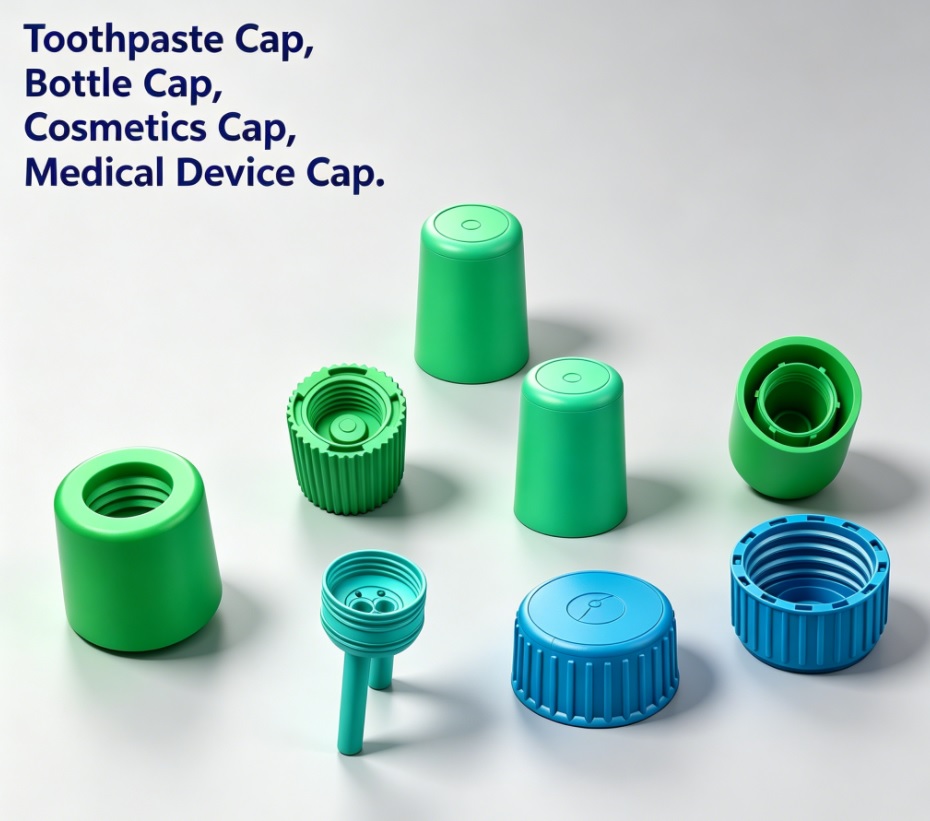

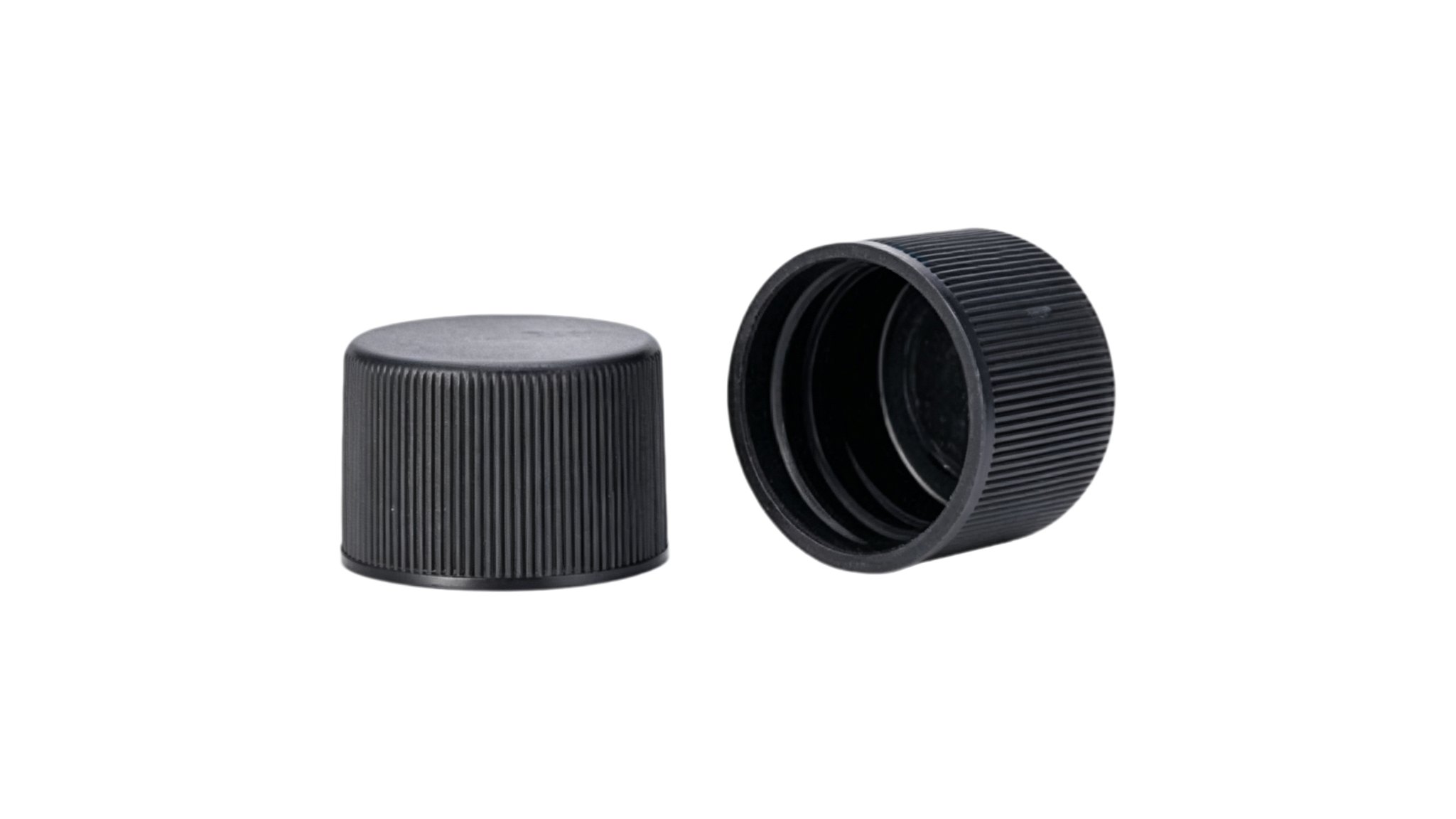

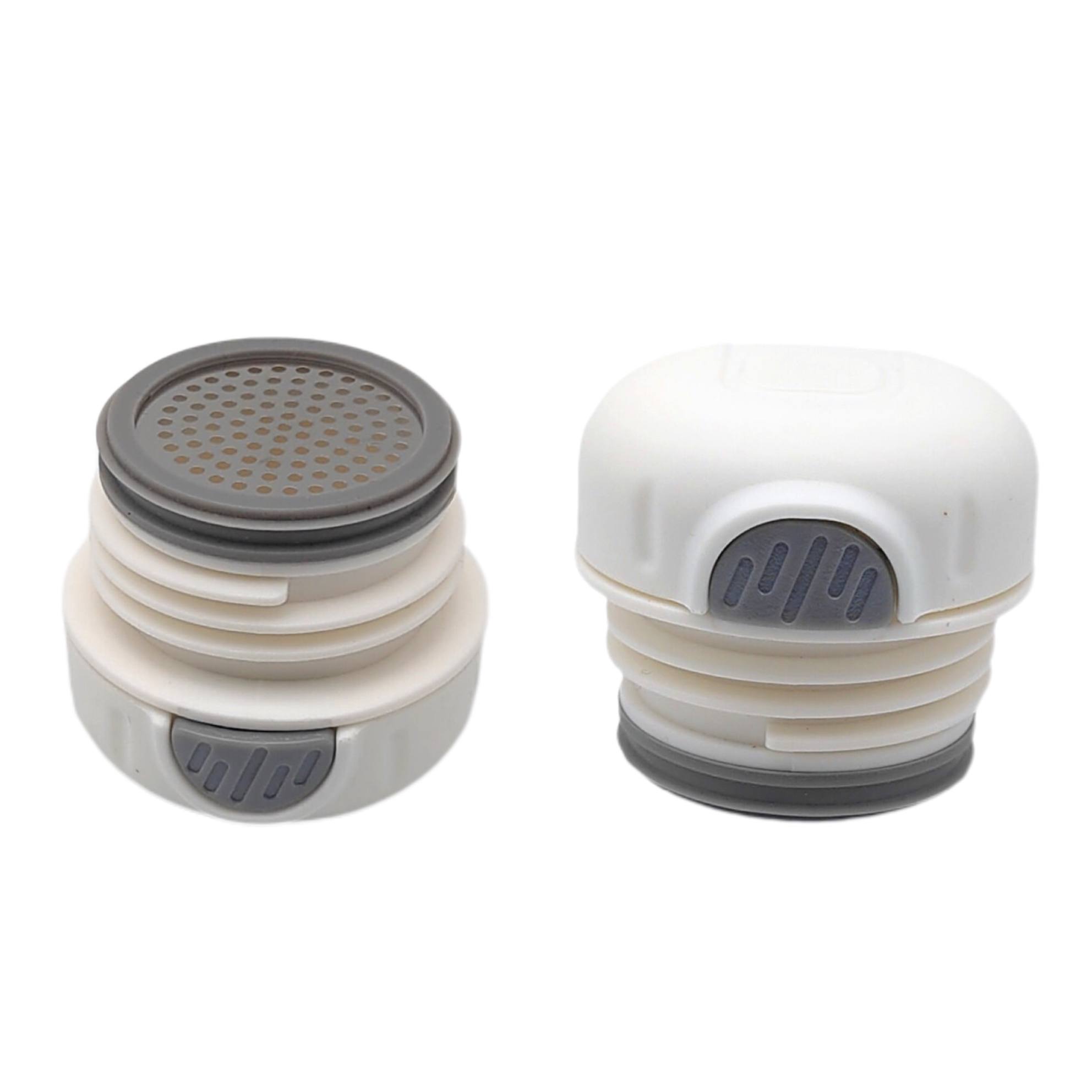

Beverage & Cosmetic Caps and Closures

Multiple-start thread designs, tamper-evident bands, and flip-top hinges on PP/HDPE closures. Common configurations include 28mm PCO, 38mm, and 48mm neck finishes. Production rates up to 12 shots per minute on high-speed presses.

Medical Vial Caps and Syringe Connectors

ISO 80369-compliant Luer lock and Luer slip connectors, child-resistant closures for pharmaceutical bottles, and threaded caps for reagent vials. Mold steel: S136 / 420 stainless for cleanroom molding conditions and corrosion resistance.

Precision Electrical Connectors and Terminal Housings

M12/M8 circular connectors, cable gland nuts, and junction box threaded entries. ±0.01mm tolerance on critical diameters for proper metal counterpart engagement. Brass insert placement and overmolding can be incorporated within the same threading mold.

Pipe Fittings and Fluid Handling Components

NPT, BSP, and metric threaded pipe fittings in glass-filled PP or PA66 for irrigation, water treatment, and chemical transfer. Rack-and-pinion designs sized to handle up to 40% glass fiber loading without wear within a projected 500K cycle mold life.

Automotive Fluid Reservoir Caps and Sensor Housings

Engine oil filler caps, coolant reservoir lids, and threaded sensor housings. Heat-resistant materials (PA66 GF30, PPS) maintaining thread integrity through thermal cycling from -40°C to +120°C.

4. Specification Table

Item	Details
Mold Type	Threading Mold / Unscrewing Mold
Unscrewing Drive	Rack and pinion, hydraulic motor, servo-electric (per project)
Typical Part Materials	PP, HDPE, ABS, PA6, PA66, POM, PC, PBT, PPS
Cavity Range	1 to 16 cavities; up to 32 (stack mold)
Thread Pitch Tolerance	±0.02mm standard; ±0.01mm on request
Mold Steel (Thread Cores)	H13 nitrided, D2, S136 stainless, M340
Cooling Configuration	Conformal cooling around thread zones; BeCu inserts available
Surface Finish	SPI A-2 to A-3; diamond polish for transparent grades
Mold Life Expectancy	500K to 1M+ shots depending on material and steel
Design Support	DFM, mold flow analysis, gear train simulation, 3D mold design
Trial & Validation	Dry-run test 2-4 hrs, T1 sampling, Go/No-Go gauge report

5. Project Process & Quality Control

Phase 1: Thread Feasibility & DFM Analysis

Action：Review 3D CAD and 2D drawing. Check thread pitch, lead angle, wall thickness at thread roots, and plastic shrinkage rate. Recommend optimal unscrewing drive method (rack-and-pinion, hydraulic, or electric servo) for cycle-time-to-cost ratio.

QC Focus：DFM report: thread demoldability, estimated cycle time, gate position recommendation, shrinkage compensation calculation.

Phase 2: Gear Train Design & Motion Simulation

Action：Full 3D design of unscrewing mechanism: gear pitch diameter, rack length, rotation angle, inter-cavity synchronization. Motion simulation of full mold open-unscrew-close cycle.

QC Focus：Kinematic simulation report: zero gear interference, correct rack travel distance, synchronized rotation across all cavities. Gear ratio and torque verification.

Phase 3: Core & Cavity Machining

Action：Thread cores CNC-turned and thread-ground. Cavity plates high-speed milled. All thread-form steel hardened and nitrided before finish grinding.

QC Focus：100% CMM on thread core pitch diameter, lead accuracy, and Ra ≤0.2μm on thread flanks. HRC 48-52 hardness test on every core.

Phase 4: Assembly & Fit Check

Action：Full mold assembly with gear train installation. Manual rotation test to verify smooth unscrewing motion. Gear lash measured and adjusted.

QC Focus：Assembly checklist: sliding fits verified, gear lash 0.03-0.05mm, water line pressure test 8 bar/30 min, hot runner continuity test.

Phase 5: T1 Mold Trial & Unscrewing Test

Action：Mold on injection press. Process parameters optimized for thread fill, cooling time, and unscrewing speed. Parts sampled at operating temperature.

QC Focus：2-hr continuous automatic run for mechanism stability. All cavity samples: thread Go/No-Go gauge check. Full CMM dimensional report. Cross-section cut for thread profile on first article.

Phase 6: Final Inspection & Export Packaging

Action：Final cleaning, anti-rust treatment, fumigated wooden crate packing.

QC Focus：Mold trial video, full parameter sheet, steel certificates, spare parts list provided to buyer before dispatch.

6. Why Choose XINKEY MOULD

Unscrewing Is Our Core Competence

We have designed and built threading molds for caps, medical closures, and precision connectors for over two decades. Our engineers understand the difference between a mold that runs 500K shots and one showing thread drift at 50K—because we learned it on real production floors, not just in CAD.

Mechanism Design Proven Before Steel Cutting

Every threading project starts with kinematic simulation of the unscrewing mechanism—gear engagement, rack travel, rotation angle, torque calculation. This validates motion logic before any steel is cut, reducing the chance of mechanism rework after T1.

Conformal Cooling Around Threads

Standard straight cooling lines cannot follow helical thread core geometry. We design conformal cooling channels wrapping thread zones, reducing cooling time and improving thread roundness. For high-temperature materials like PPS, this can cut cycle time by 20-25%.

Full Export Project Documentation

Project engineers handle technical communication in English, provide structured weekly progress updates, and deliver complete mold documentation—DFM report and T1 dimensional data—so buyers receive the information needed to install and run the mold immediately.

7. FAQ

Q1: What is the difference between a threading mold and a standard injection mold?

A standard two-plate mold ejects parts by pushing them off the core with ejector pins. Parts with threads cannot be pushed off directly because the thread acts as an undercut. A threading mold includes a mechanical unscrewing mechanism that rotates the threaded core out of the part before ejection, releasing threads without damage.

Q2: Which unscrewing drive type is best—rack-and-pinion, hydraulic, or electric servo?

It depends on your production requirements. Rack-and-pinion is cost-effective and reliable for medium-to-high volumes with consistent cycles. Hydraulic motors provide higher torque for deep threads or fiber-filled materials. Electric servo drives give the most precise control of rotation speed and angle—ideal for delicate threads or variable-speed unscrewing sequences. We discuss the best option during DFM after reviewing your part design and volume target.

Q3: What thread pitch tolerance can XINKEY MOULD guarantee?

Standard: ±0.02mm across all cavities. For precision applications—medical Luer connectors, automotive sensor threads—we offer ±0.01mm with tighter grinding specs, in-process CMM checks, and per-cavity Go/No-Go gauge reports at T1.

Q4: Can a threading mold produce both left-hand and right-hand threads in the same part?

Yes, with a split unscrewing mechanism where two sets of cores rotate in opposite directions. This adds complexity to the gear train and increases mold cost, but is technically feasible. We evaluate whether separate tools or stations are more practical during DFM.

Q5: I need a mold for transparent PP caps. Will thread marks be visible?

Transparent materials are unforgiving—any surface defect on the thread core transfers to the part. For transparent PP or PC parts, we polish thread cores to SPI A-2 or diamond finish, use dedicated injection velocity profiles, and validate cosmetic results through short-shot analysis before full-rate production.

Q6: What information should I send for a quotation?

3D CAD file (STEP or IGES), 2D drawing with thread specifications, target material, annual production volume, cavity number preference, and any special requirements such as insert placement, hot runner preference, or specific mold steel. Also helpful: assembly drawings showing how the threaded part mates with its counterpart.

Q7: How long does it take to build a threading mold?

A typical single-face 4-cavity threading mold takes approximately 6-8 weeks from design freeze to T1. Complex multi-cavity or stack-mold configurations may require 8-12 weeks. We provide a project timeline at quotation and weekly updates during execution.
